Products

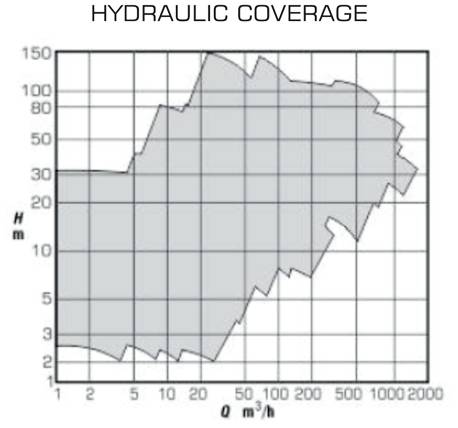

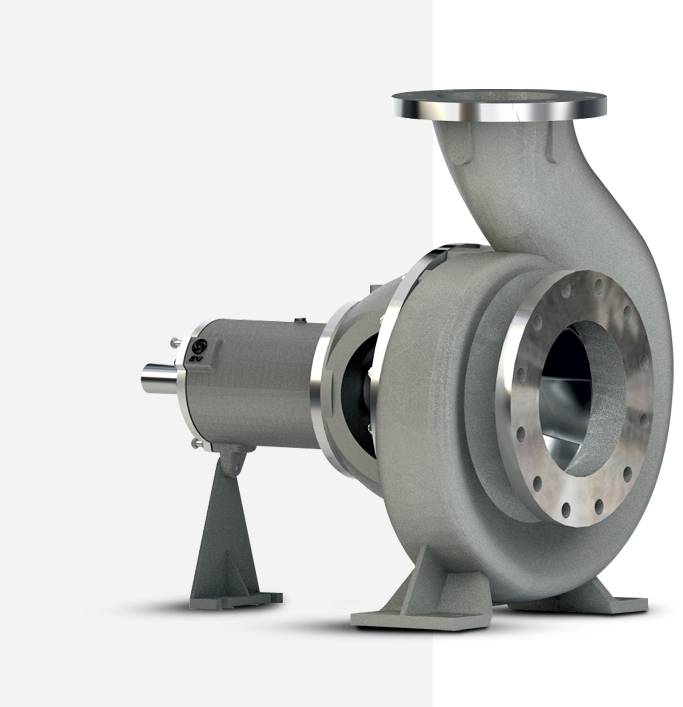

Type - MSP
Chemical Process Pump
Range
- Capacity to 1600 m3/h
- Head to 150 m
- Temperature to -20°C to 150°C
- Pressure to 1600 kPa
FEATURES
- ISO 2858, 5199 Standard dimensions
- Maximum interchangeability, gives minimum spare parts inventory
- Greater quality control and accuracy in production of every pump with the modern machining operations
- Back Pull Out design permits quick inspection of repairs of rotating elements without disturbing electrical and piping connections
- Standard foundations save installation, down time, talent and money
- MSP pumps available with dynamic sealing

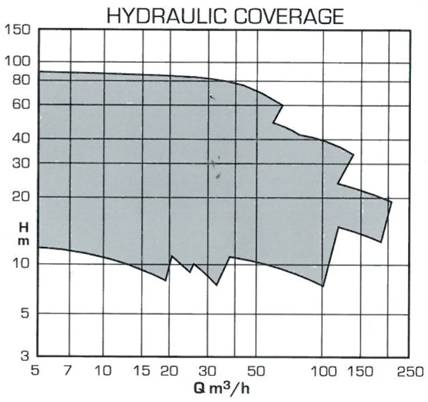

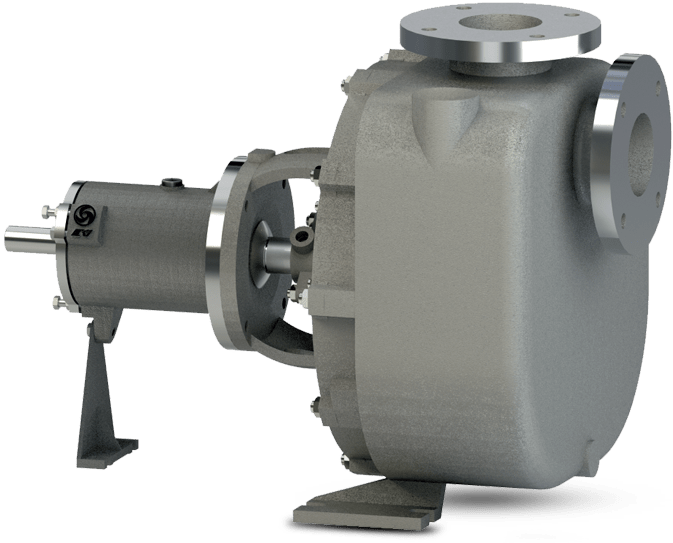

Type - MSP-SP
Self Priming Pump
Range
- Capacity to 210 m3/h
- Head to 90 m
- Temperature to 0°C to 150°C
- Pressure to 1600 kPa
FEATURES
- Special design of self priming casing requires priming only once at the time of first start.
- No need to provide foot valve or check valve on suction.
- Power end assembly are interchangeable with corresponding groups of Akay MSP series.
- Back-Pull-Out design permits quick inspection of repairs of rotating elements without disturbing electrical and piping connections.

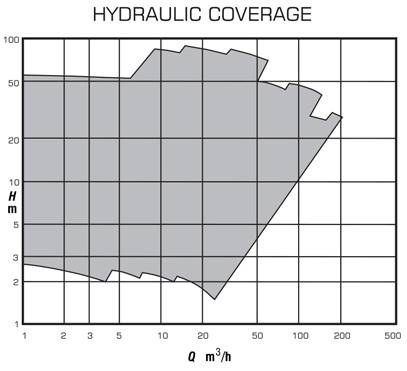

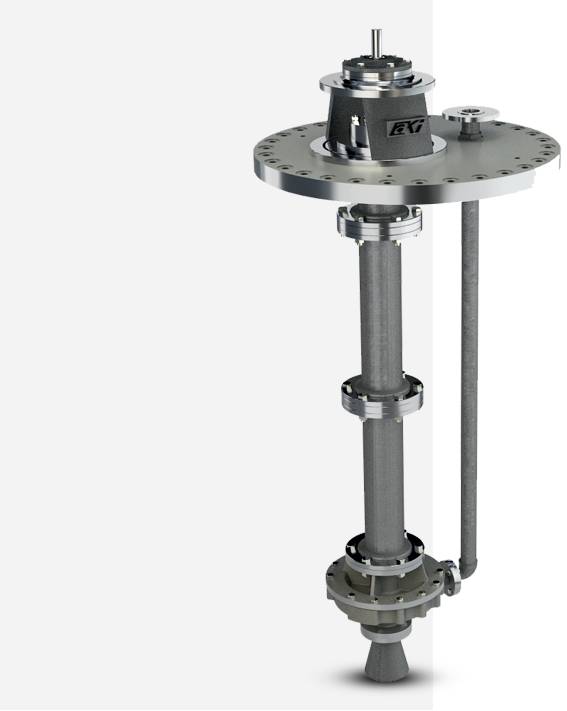

Type - MSP-VP
Vertical Submersible Pump
Range
- Capacity to 210 m3/h
- Head to 90 m
- Temperature to 150°C
FEATURES
- Open Impeller keyed and bolted to Shaft
- Self lubricated carbon bush bearing
- Grease lubricated antifriction bearings sized for L10 rating life of 25000 hrs.
- Stuffing box can accommodate any type of sealing arrangement
- Simple external axial adjustment for impeller wear
- Maximum interchangeability, gives minimum spare parts inventory

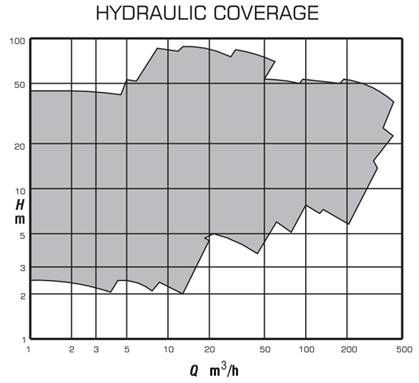

Type - MSP-CP
Cantilever Submersible Pump
Range
- Capacity to 430 m3/h
- Head to 90 m
- Temperature to 150°C
FEATURES
- Cantilever design- no submerged bearings.
- Grease lubricated antifriction bearings sized for L10 rating life of 25000 hrs.
- Cantilever design does not have bush bearing & hence no need for Cooling water requirement
- Fully open impeller with back pump out vanes smoothly contoured for efficient slurry and solids handling and to meet low NPSH requirements
- Eliminates mechanical seal
- Simple external axial adjustment for impeller wear.

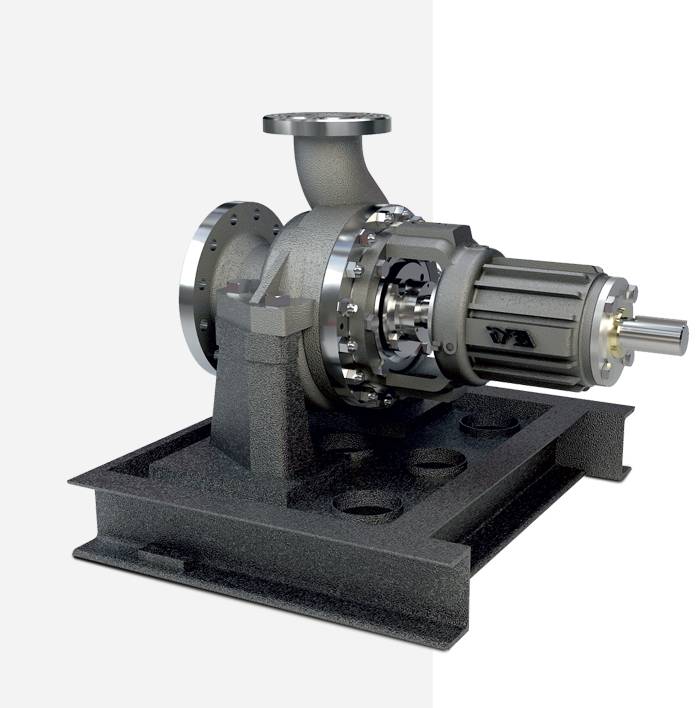

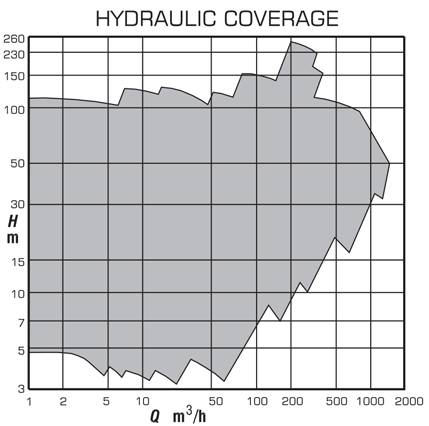

Type - AKP
API 610 Process Pump
Range
- Capacity to 1400 m3/h
- Head to 250 m
- Temperature to 425°C
- Pressure to 5000 kPa
FEATURES
- Centerline support - high temperature stability meets API 610 nozzle loading & stiffness criteria.
- Pressure joints metal to metal face with confined, controlled gasket.
- 3 inch discharge nozzle and larger has double volute construction minimizes radial thrust and more bearing life.
- Outboard bearing: standard duplex angular contact. Triplex bearing design available for high suction pressure applications.
- Seal chamber to API 610 and accommodate all types of sealing arrangement of chemflo mechanical seal.
- Heavy duty shaft and bearings engineered to give very low deflection.

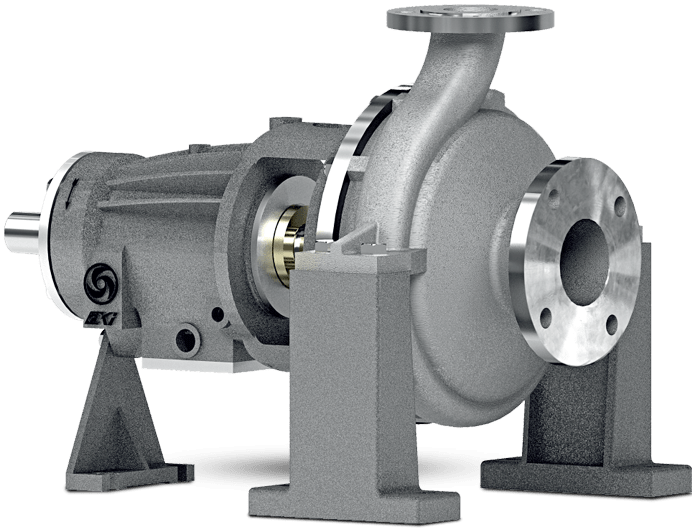

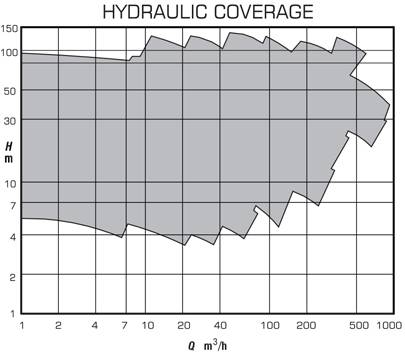

Type - HTP
High Temperature Pump
Range
- Capacity to 950 m3/h
- Head to 40 m
- Temperature to 400°C
- Pressure to 2000 kPa
FEATURES
- Center line support
- Heavy duty Shaft and Bearing
- Renewable Front and back wearing ring
- Pressure Joints with metal to metal face controlled compression gasket
- High efficiency and low NPSH
- Back-Pull-Out design permits quick inspection of repairs of rotating elements without disturbing electrical and piping connections
- Greater quality control and accuracy in production of every pump with the modern machining operations

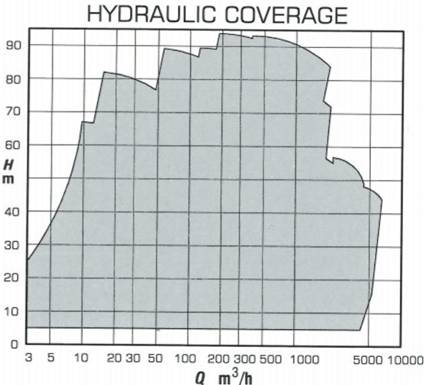

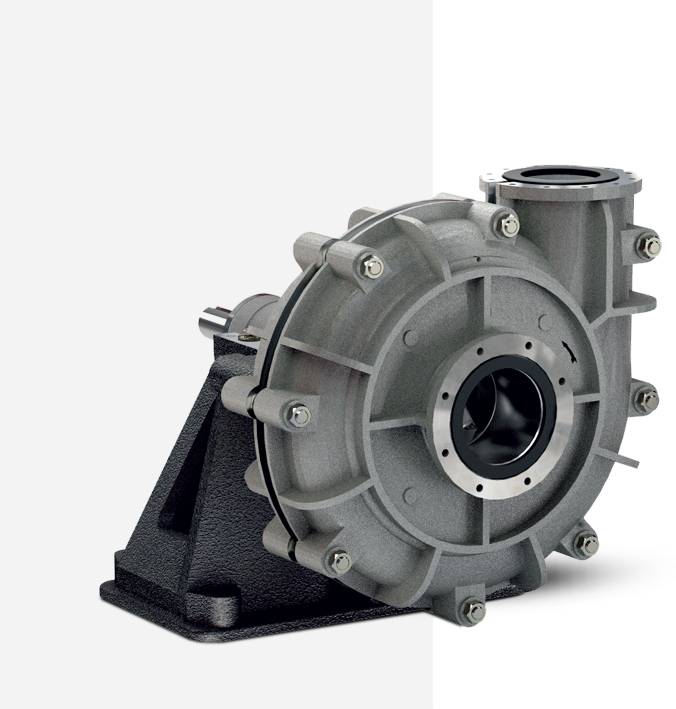

Type - AHP
Heavy Duty Slurry Pump
Range
- Capacity to 5000 m3/h
- Working Pressure to 1600kPa
- Head to 93 m
- Discharge Size DN25 to DN450
FEATURES
- A split outer casing enables to replace worn out inner liners without reducing structural strength.
- A large range of elastomer and hard metal replaceable liners and impellers are fully interchangeable within the same pump
- An extremely heavy duty shaft with a short overhang minimises deflection and vibration.
- Heavy duty grease lubricated roller bearings are protected with labyrinth seals at both ends.
- Cartridge type bearing assembly.

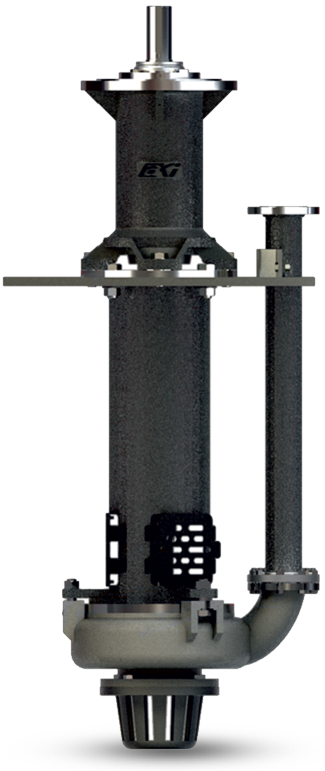

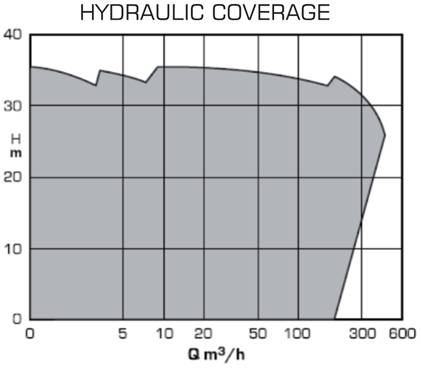

Type - AVP
Heavy Duty Slurry Pump
Range
- Capacity to 450 m3/h
- Head to 35 m
- Discharge Size 40mm to 200mm
- Max. Submergence 2000mm
FEATURES
- Double suction impeller balances axial thrust and hence increase bearing life
- Heavy duty cantilever shaft to yield low deflection
- Heavy duty roller bearing on drive end and two row taper roller bearing at lower end of bearing housing.
- Bearing assembly dimensionally interchangeable between metal & elastomer
- Impeller adjusted axially by means of shims underneath bearing housing feet.

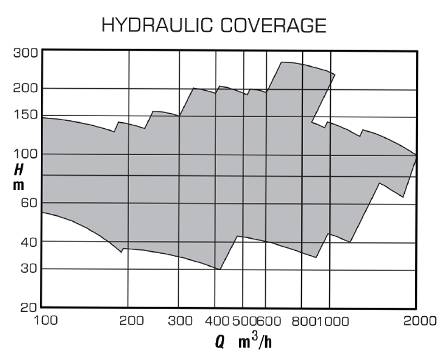

Type - DSP
Double Suction Pump
Range
- Capacity to 2000 m3/h
- Head to 280 m
- Temperature to 200°C
- Pressure to 5000 kPa
FEATURES
- Double volute casing design balances radial thrust and there by minimises shaft deflection
- Double suction impeller design with adequate suction chamber area give rise to low NPSH.
- Axial split design allows the removal of rotor without disturbing driver, suction & discharge piping.
- Seal chamber accommodates all types of sealing arrangement of chemflo mechanical seal.
- Double suction impeller balances axial thrust and hence increases bearing life.
- Maximum shaft deflection less than 0.05 mm at face of the stuffing box ensures long seal and bearing life and low maintenance.

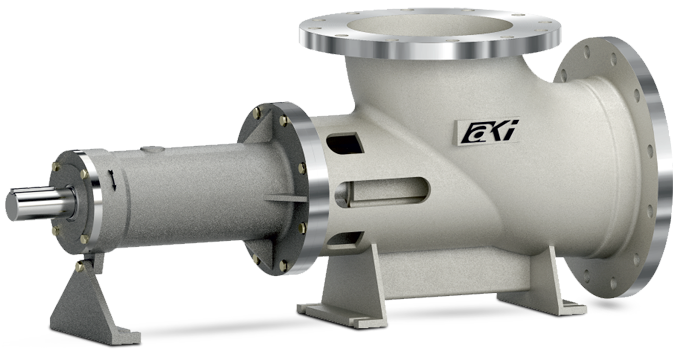

Type - AFP
Axialn Flow Pumps
Range
- Capacity to 15000 m3/h
- Head to 9 m
- Temperature to 180°C
- Max. working Pr-16kg/Cm2
FEATURES
- Axial flow impeller blade designed for optimum efficiency using aerofoils
- Pump can be used either in end or top suction depending on piping configuration
- Shaft engineered to give deflection less than 0.05mm
- Grease Lubrication
- Various arrangements of chemflo mechanical seal can be accmmodated

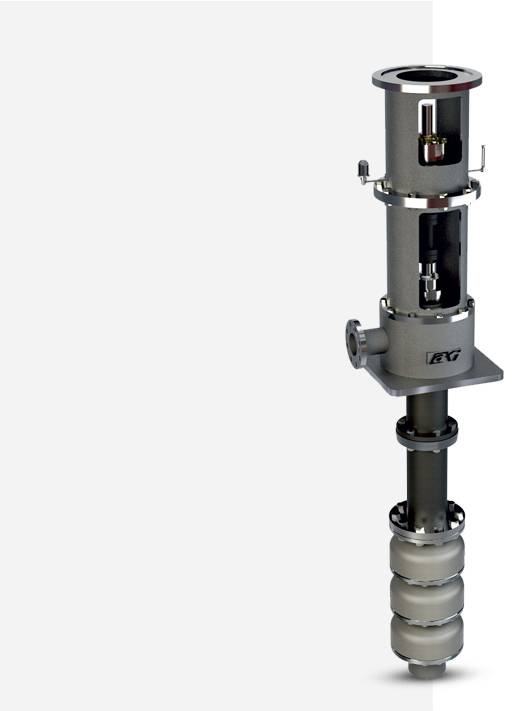

Type - VIT
Vertical Turbine Pump
Range
- Capacity to 5000 m3/h
- Head to 80 m
- Temperature to 230°C
FEATURES
- Closed impellar with renewable wearing rings
- Flanged conical diffuser designed to provide optimum efficiency
- Fabricated discharge head
- Built in alignment
- Ease of installation & maintanance

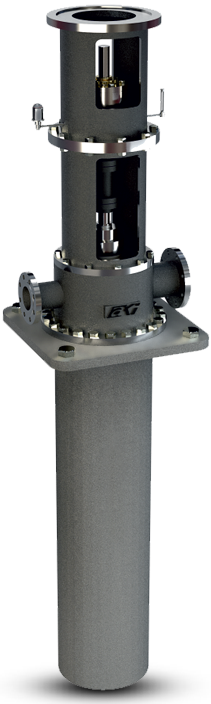

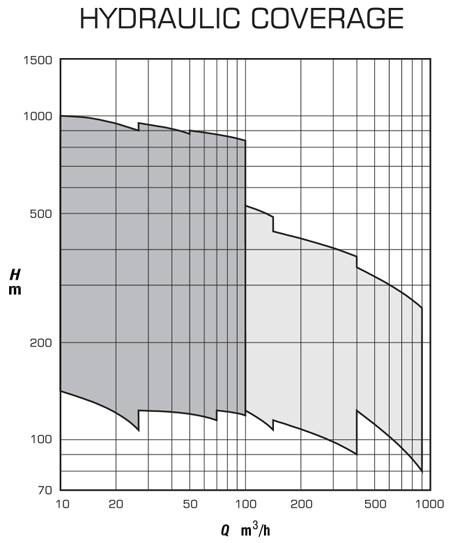

Type - VIC
Vertical Can Pumps
Range
- Capacity to 900 m3/h
- Head to 1000 m
- Temperature to 37°C
FEATURES
- Closed impellar with renewable wearing rings
- Straight diffuser designed to provide optimum efficiency
- Fabricated discharge head
- Adequate submergence can be provided to meet NPSH available
- Suction and discharge are in line
- Any type of mechanical seal can be fitted
