Valves

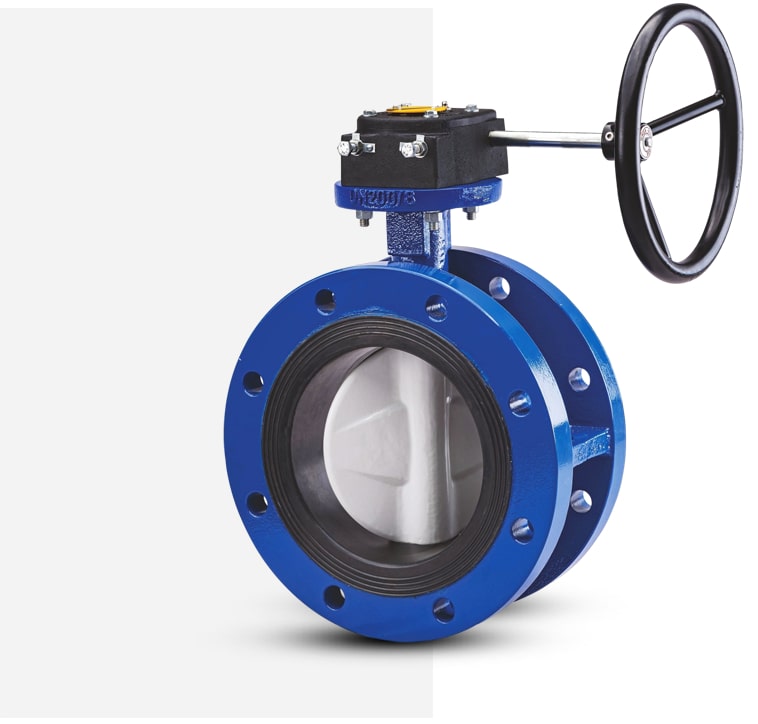

Double Off Set Butterfly Valves EN 593 (BS 5155)
(Double Flanged - Elastomer Seal Ring)
Applications
- Water
- Sea Water & Brine
- Effluents
- Waste Water
Test Pressure in bar (psi)
| Pressure rating | PN16 | PN10 | PN6 | PN2.5 |
|---|---|---|---|---|
| Hyd. Shell | 24 (348) | 15 (218) | 9 (131) | 3.75 (54) |
| Seat | 176 (255) | 11 (160) | 6.6 (96) | 2.75 (40) |
| Air Seat | 6.9 (100) | 6.6 (96) | 2.75 (40) |
Design STD: EN 593
Testing STD: EN 12266-1

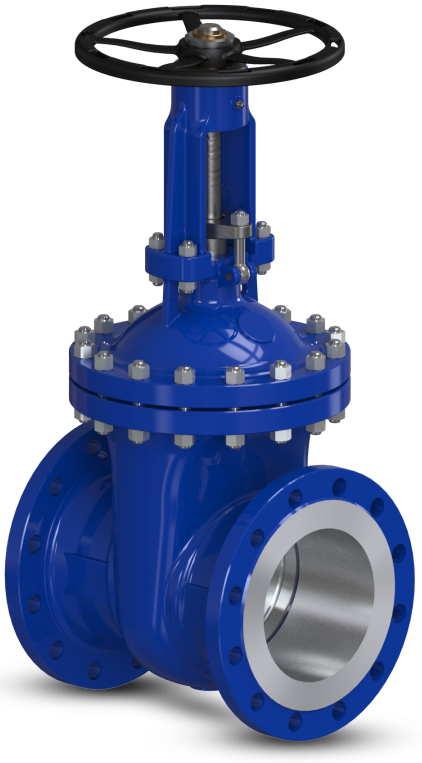

Gate Valves
Bolted Bonnet Design
Class – 150, 300
Features
Heavy duty OS & Y type, bolted bonnet, rising stem, non rising hand wheel, renewable seatring for Carbon Steel Valves. Valves with most advanced design Features provide the ultimate in dependable, economic flow control.
Test Pressure in bar (psi)
| Pressure rating | Class 150 | Class 300 |
|---|---|---|
| Hyd. Shell | 30 (435) | 77 (1117) |
| Seat/Back Seat | 22 (319) | 57 (827) |
| Air Seat | 6.9 (100) | 6.9 (100) |
Design STD: API 6D & API 600
Testing STD: API 6D & API 598
FE = Flanged End
BWE Butt Weld End

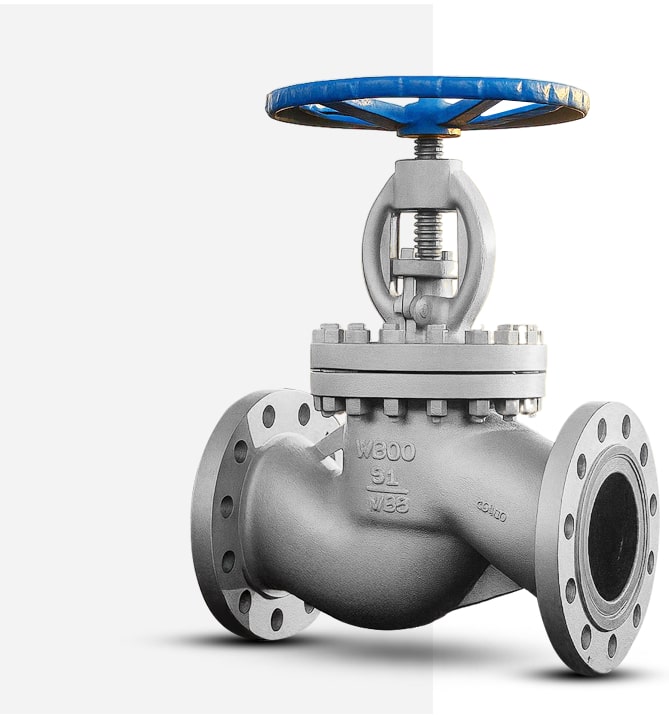

Globe Valve
Bolted Bonnet Design
Class – 150, 300
Features
Heavy duty OS & Y type, bolted bonnet, rising or non rising hand wheel, renewable Seatring for Carbon Steel Valves with most advanced design Features provide the ultimate in dependable, economic flow control.
Test Pressure in bar (psi)
| Pressure rating | Class 150 | Class 300 |
|---|---|---|
| Hyd. Shell | 30 (435) | 77 (1117) |
| Seat/Back Seat | 22 (319) | 57 (827) |
| Air Seat | 6.9 (100) | 6.9 (100) |
Design STD: BS 1873
Testing STD: EN 12266-1
FE = Flanged End
BWE = Butt Weld End

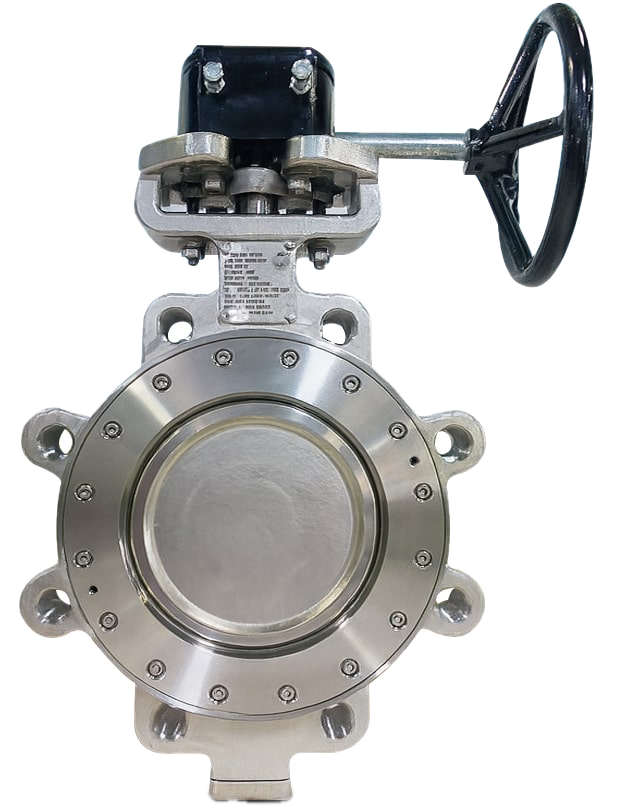

Double Off Set Butterfly Valves Class-300
Lugged Type & Flanged End (Replaceable PTFE Seat & Metal Seat)
Applications
- Oil & Gas
- Power Plants
- Fertilizers
- Exhaust Gas
- Sea Water & Brine
- Weak Acid & Alkali
- Petrochemicals
- Slurries
- Hydro Carbons
- Sour Service
- Oxygen Service
- HVAC
Heavy duty OS & Y type, bolted bonnet, rising or non rising hand wheel, renewable Seatring for Carbon Steel Valves with most advanced design Features provide the ultimate in dependable, economic flow control.
Test Pressure in bar (psi)
| Pressure rating | Class 300 |
|---|---|
| Hyd. Shell | 76 (1102) |
| Seat | 55 (798) |
| Air Seat | 6.9 (100) |
Design STD: API 609 Cat-B
Testing STD: API 598
Test Pressure in bar (psi)
| Pressure rating | Class 150 |
|---|---|
| Hyd. Shell | 76 (1102) |
| Seat | 4 (58) |
Metal Seat
Design STD: API 609 Cat-BTesting STD: ANSI FCI 70.2 Class IV

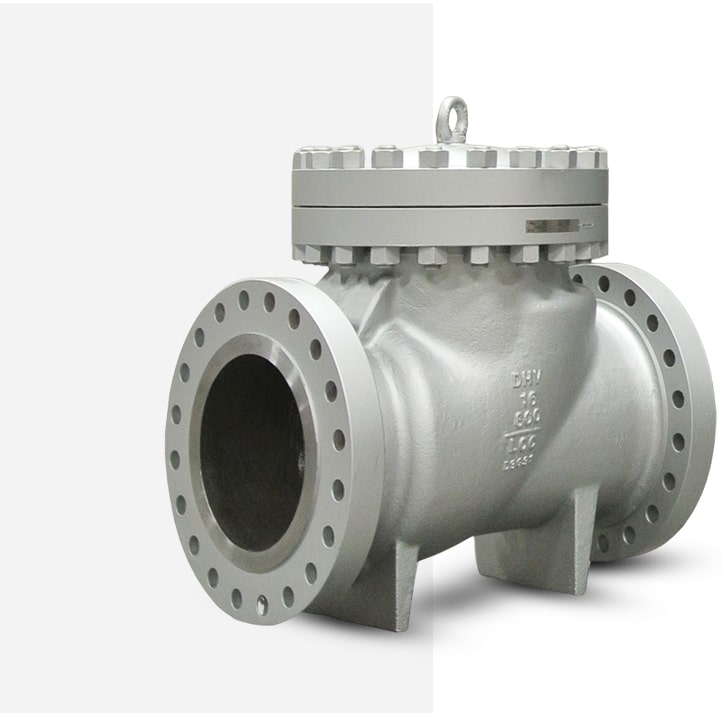

Check Valves
Bolted Cover Design
Class 150, 300
Features
Heavy duty bolted cover / Pressure seal cover, with renewable seatring for Carbon Steel & integral seatring for stainless steel, Cover mounted / body mounted disc, Valves with most advanced design Features provide the ultimate in dependable, economical flow check.
Test Pressure in bar (psi)
| Pressure rating | Class 150 | Class 300 |
|---|---|---|
| Hyd. Shell | 30 (435) | 77 (1117) |
| Seat | 22 (319) | 57 (827) |
| Min. Seat | 5.5 (80) | 14 (203) |
Design STD: API 6D & BS 1868
Testing STD: API 6D & EN 12266-1
FE = Flanged End
BWE Butt Weld End
